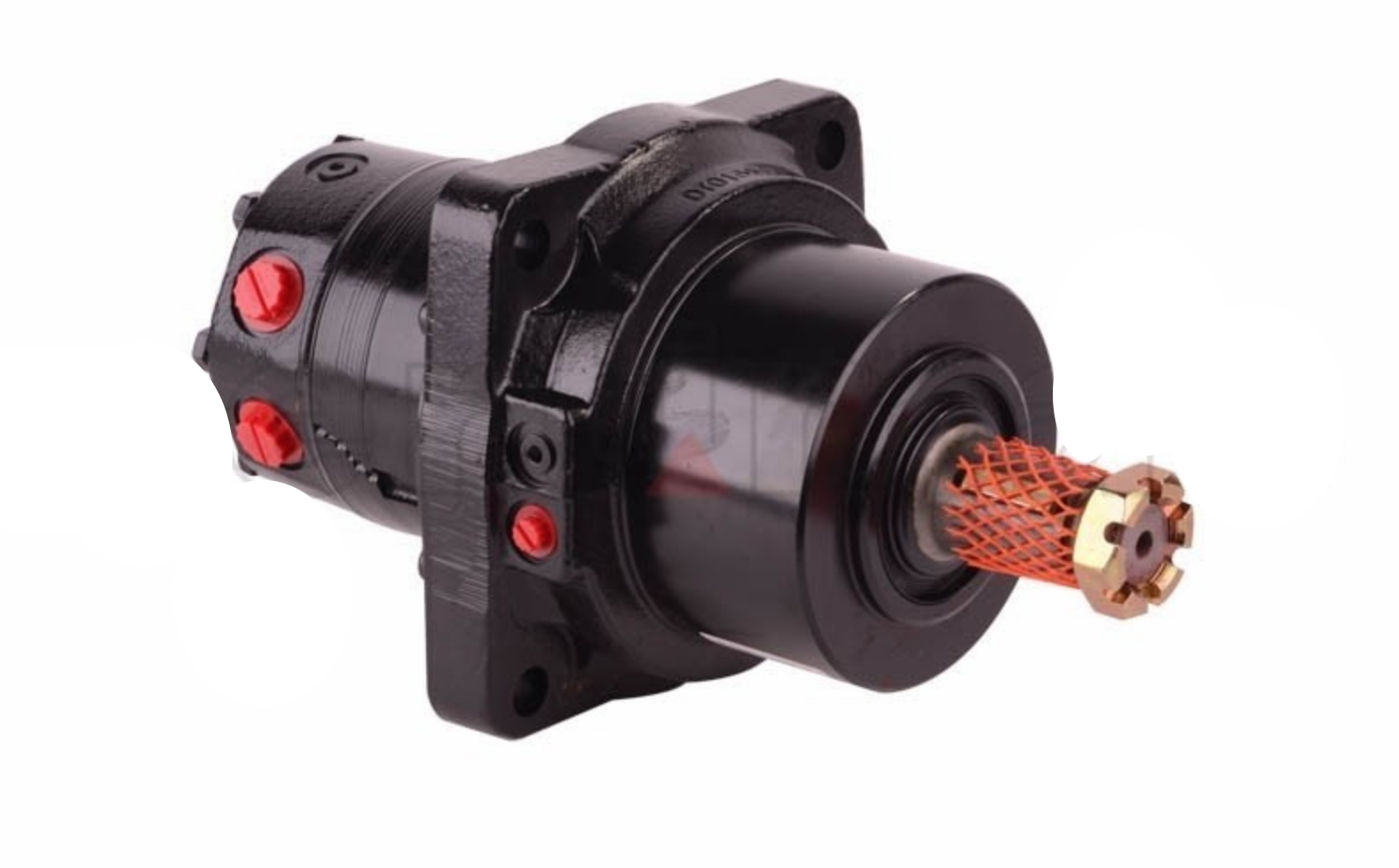

Drive motor/brake Genie 104782
€1,688.22 Excl. GST
Genie 104782 fits GS2668RT, GS3268RT.
| Type of hydraulic motor | A |
|---|---|
| Length L1 (mm) | 335 |
| Length L2 (mm) | 75 |
| Diameter D1 (mm) | 127 |
| Type of flange TY-Fl | C |
| Neck diameter D2 (mm) | 134 |
| Number of mounting holes AT-GA | 4 |
| Diameter D3 (mm) | 16 |
| Centre distance C (mm) | 148 |
| Type of shaft TY-AS | E |
| Distance L3 (mm) | 180 |
| Shaft diameter D4 (mm) | 32 |
| Key width B (mm) | 8 |
| Thread type TA2 | 1 1/8 |
| Pitch imperial Pi2 | 18 |
| Number of connections | 3 |
| Thread type TA3 | 3/4 UNF |
| Pitch imperial Pi3 | 16 |
| Second thread type TA4 | 7/16 UNF |
| Pitch imperial Pi4 | 20 |
| Length (m) | 0.20 |
|---|---|
| Width (m) | 0.20 |
| Height (m) | 0.35 |
| Weight (kg) | 28.50 |
