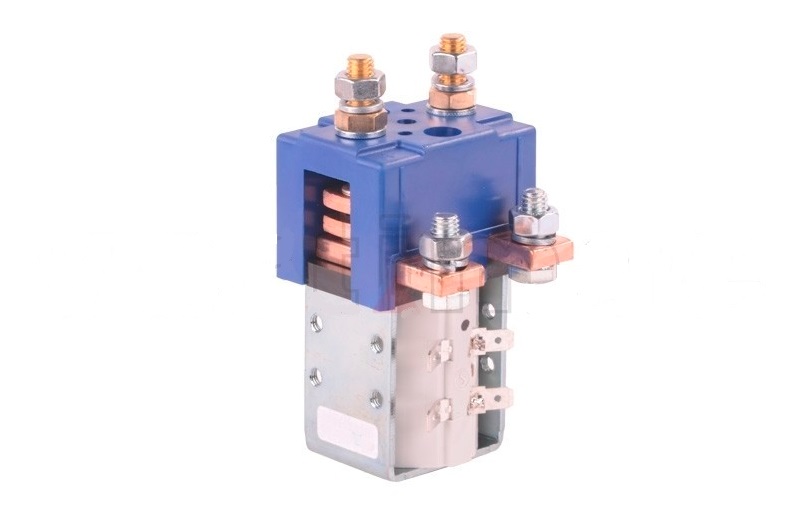

Contactor 48V Haulotte 2440304390
€106.34 Excl. GST
Contactor 48V Haulotte 2440304390 fits HA12I, HA15I
| Shape of the contactor |
square shape 4 |
| Maximum length of the contactor L1 (mm) |
64 |
| Maximum width of the contactor W1 (mm) |
61 |
| Maximum height of the contactor H1 (mm) |
122 |
| Number of solenoids |
1 |
| Voltage of the solenoid (V) |
48 |
| Type of current |
direct current |
| Current (A) |
150 |
| Sort of operation |
intermittent operation |
| Pull-in voltage (V) |
28.8 |
| Drop-out voltage (V) |
4.8 |
| Resistance of the solenoid (Ohm) |
71.9 |
| Number of connections on the solenoid |
4 |
| Type of connection on the solenoid |
blade 6,3mm |
| Number of contact connections |
4 |
| Type of contact connection |
hole-outer thread |
| Outer thread size |
M8 |
| Pitch metric of outer thread (mm) |
1.25 |
| Right or left handed outer thread |
right hand outer thread |
| Maximum diameter of the contact hole D2 (mm) |
9.5 |
| Fuse present |
NO |
| External diode present |
NO |
| External resistor present |
NO |
| Number of normal open contacts (NO) |
1 |
| Number of normal closed contacts (NC) |
1 |
| Auxiliary contact present |
NO |
| Diameter of the tip D3 (mm) |
10 |
| Textured tips present |
NO |
| Magnetic blow outs present |
YES |
| Top cover |
open |
| Shortest center distance between mounting holes C1 (mm) |
16 |
| Longest center distance between mounting holes C2 (mm) |
25.4 |
| Number of closed holes |
10 |
| Shape mounting surface |
flat |
| Support present |
NO |
| Length (m) |
0.13 |
| Width (m) |
0.06 |
| Height (m) |
0.07 |
| Weight (kg) |
0.88 |
